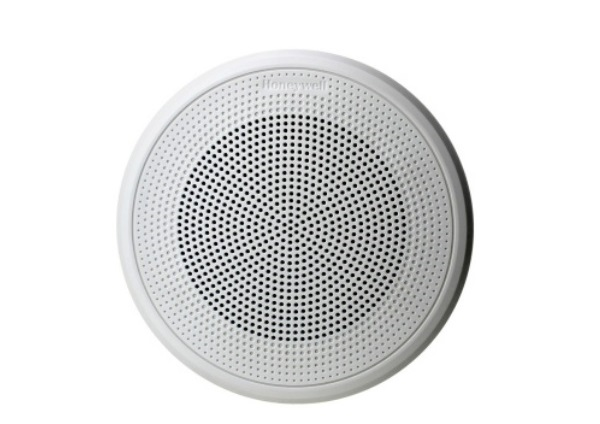

Loa âm trần 6W/3W/1.5W Honeywell LM2-PCP06A

Contact

Describe:

Loa âm trần 6W/3W/1.5W Honeywell LM2-PCP06A

- Chất liệu: ABS

- Màu: Trắng

- Kích thước: 180 x 73 mm  (Ø x H)

- Lỗ cắt: Ø160 mm

Specifications

ModelLM2-PCP06A
Max power9 W
Rated power6 W
Power taps @ 100 V6 W / 3 W / 1.5 W
Power taps @ 70 V3 W / 1.5 W / 0.75 W
SPL at 6 W /1 W (120 Hz-18 KHz, 1 m)99 dB / 91dB
Frequency range (-10 dB)80 Hz - 20 KHz
Dispersion angle (1 Khz / -6 dB)184 / 90
Rated input voltage100 V / 70 V
Rated impedance1.7 KΩ / 3.3 KΩ / 6.7 KΩ
Connection4-pole screw plastic block
DimensionsØ180 x 73 mm
Hole cut-out sizeΦ 160 mm
Weight0.64 kg
Diameter of speaker5'
MaterialABS (UL94V0)
